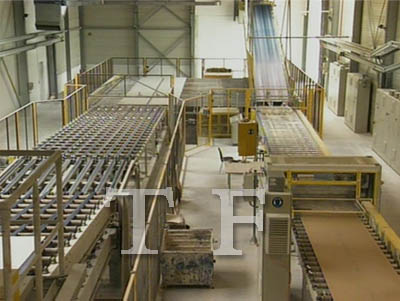

| # 1 transverse system |
Automatic board cutter |
Automatic correcting and marking |

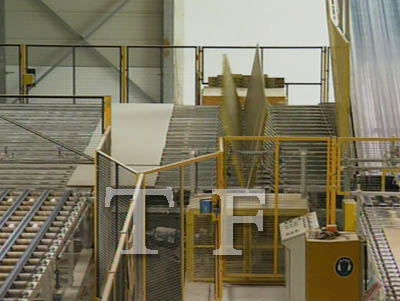

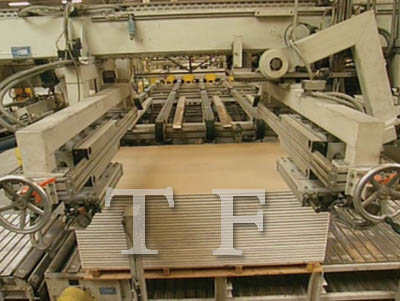

Board stacking |
 |
 |
 |
 |

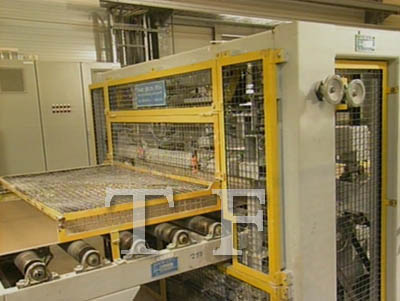

| Board turning |

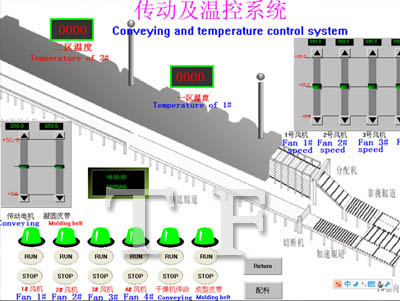

Conveying and temperature control system |

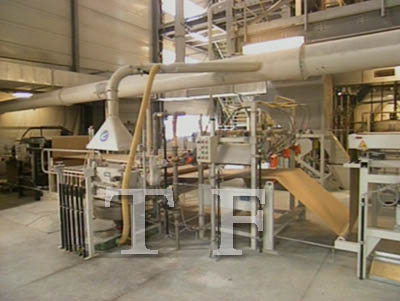

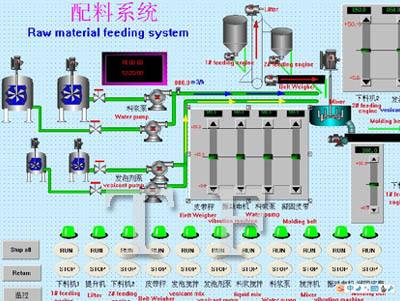

Raw material feeding system |

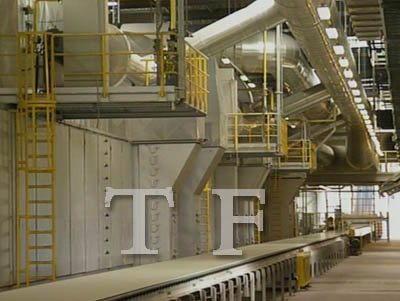

Heat exchanger dryer |
Production Capacity: |
2 million m2/year 4 million m2/year
5 million m2/year 6 million m2/year
8 million m2/year 10 million m2/year
15 million m2/year 20 million m2/year |
Raw Materials Consumption for per Square Meter Gypsum Board: |
Land Plaster |
6.8kg/m2 |
Shielding paper |
0.48kg/m2 |
Modified starch |
0.035kg/m2 |
Foaming agent |
0.008kg/m2 |
Glue |
0.005kg/m2 |
Fiberglass (Not need badly) |
0.025kg/m2 |
Electricity |
0.3kwh/m2 |
Water |
4.8kg/m2 |
Heavy oil:11000kcal/kg |
Heat consumption:∽3800kcal/m2 |
Natural gas: 8500kcal/ m3 |
Heat consumption:∽3800kcal/m2 |
|
Main Production Technology Referring to Flow Chart: |
Heat conductive oil drying system adopting natural gas, heavy-oil or coal as fuel |
Specifications of Final Products: |
Thickness: 8mm to 20mm
Width: 1200mm, 1220mm
Length: 2000mm-3600mm |
|
|
|
